Name: AC 220V TO 360W DC 24V 15A Transformer Power Supply
SKU: 027bd7e6e861
Availability: InStock

Description

Specification:

Size	21.5 x 11.5 x 5.0cm

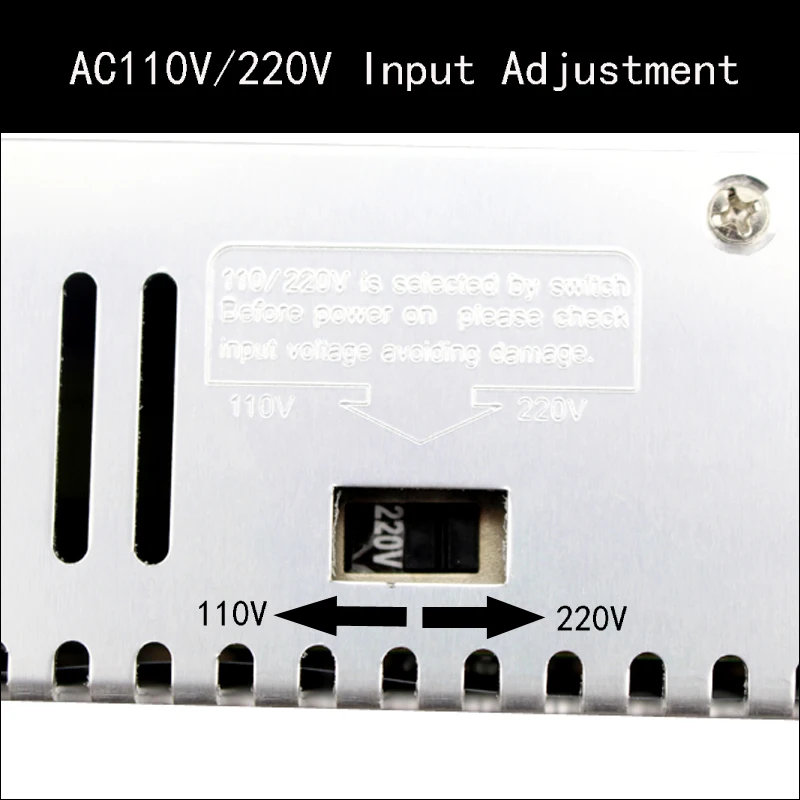

Input Voltage	100~120V AC, 200~240V AC (Preset 230V)
Output Voltage	DC 24V
Output Current	0~15A
Rated Power	360W
Shell Material	Metal case / Aluminum base
Protection	Shortage Protection, Overload Protection, Over Voltage Protection
Safety Compliance	CCC/ FCC / CE
Working Temperature	0~+40?
Storage Temperature	-20?~+60?
Ambient Humidity	0~95% Non-Condensation

Note:
1. How to calculate Support Max LED Strip Length?
    For example:
    Your LED Strip60LEDs/m, and each LED0.2W, then calculate max LED Strip
    Length: 0.2W/LED × 60LEDs/m=12W/m, 360W(this listing)÷12W/m=30m, so Support the
    LED Strip(60LEDs/m, 0.2W/LED)Length (Max)=30M
2. This power supply unit “DOES NOT” come with installation instruction, wiring cable, on/off switch, or screws.
    Professional installation of qualified electrician is highly recommended.
3. Supply two LED strip, indoor use only.
4. Widely used in Industrial automation, LED display, communications, etc.
