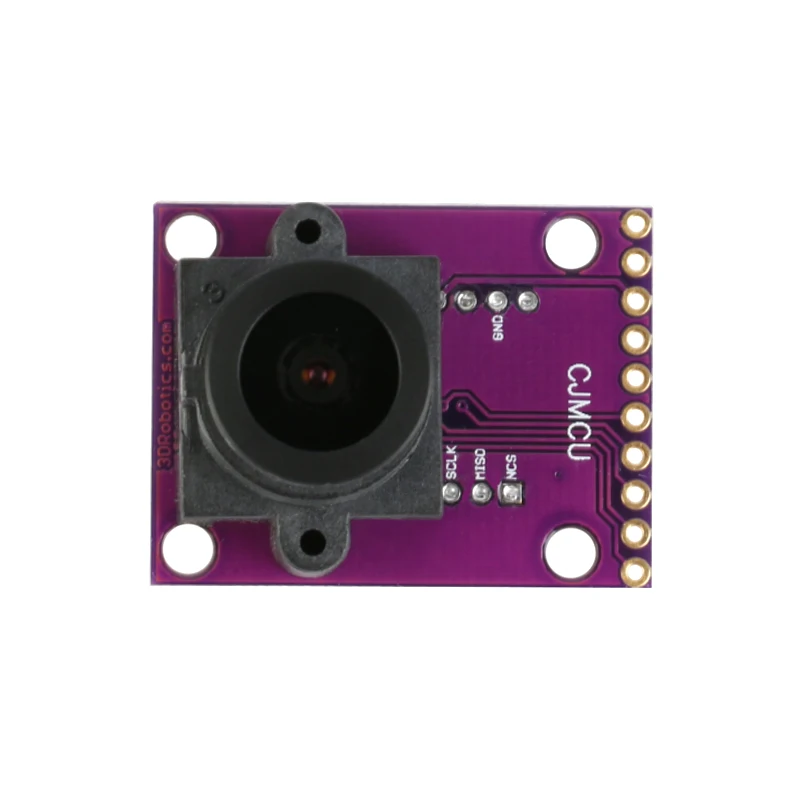

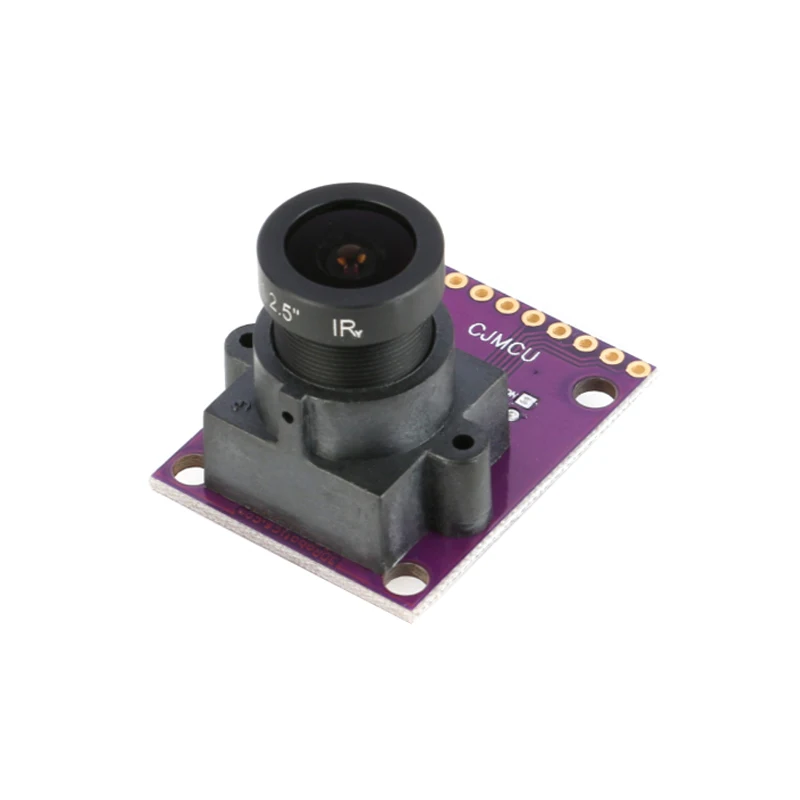

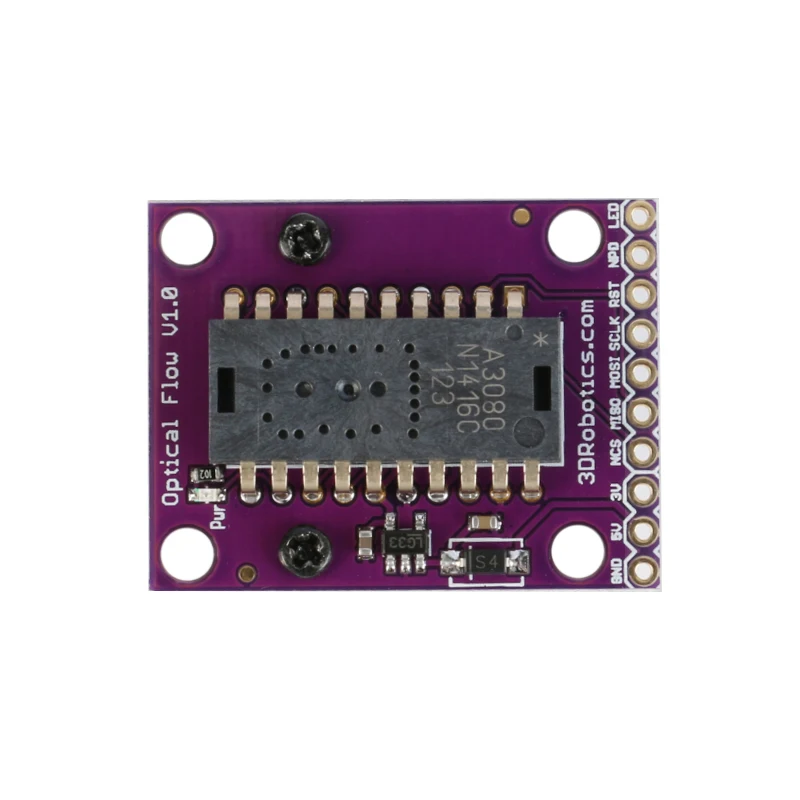

ADNS-3080 Optical Flow Sensor Module

ADNS-3080 optical flow sensor module is easy to use with Arduino boards
The sensor is based on ADNS3080 technology, it is a good solution for a displacement sensor with resolution of 30 x 30 pixels and high speed frame rate from 2000 to 6400 frames per second, which contribute to high performance in low light
It provides SPI interface, which helps in a lot easier connection with most microprocessors
Using pins to connect VCC, GND, MISO, MOSI, SCLK and NCS to your Arduino board . Load test code , then connect to a serial monitor
Default mounting is lens pointing down, pins forward. Please note: Open the lens before use, remove the protective film

Overview:
ADNS-3080 optical flow sensor module is easy to use with Arduino boards.
The sensor is based on ADNS3080 technology, it is a good solution for a displacement sensor with resolution of 30 x 30 pixels and high speed frame rate from 2000 to 6400 frames per second, which contribute to high performance in low light.
It provides SPI interface, which helps in a lot easier connection with most microprocessors.

Specifications:
Chip: ADNS 3080
30 x 30 pixel frame
frame update rate: 2000 to 6400 fps
SPI interface
8mm lens 11 deg FOV
M12x0.5 standard lens mount

A list of commands:
c – displays configurations
f – sets the frame rate and – a picture
I – continuous image displays
m – displays the movement
r – sets the resolution
s – sets shutter speed
z – delete any movement
a – frame rate auto / manual

Package Included:
1 x Optical Flow Sensor ADNS 3080
