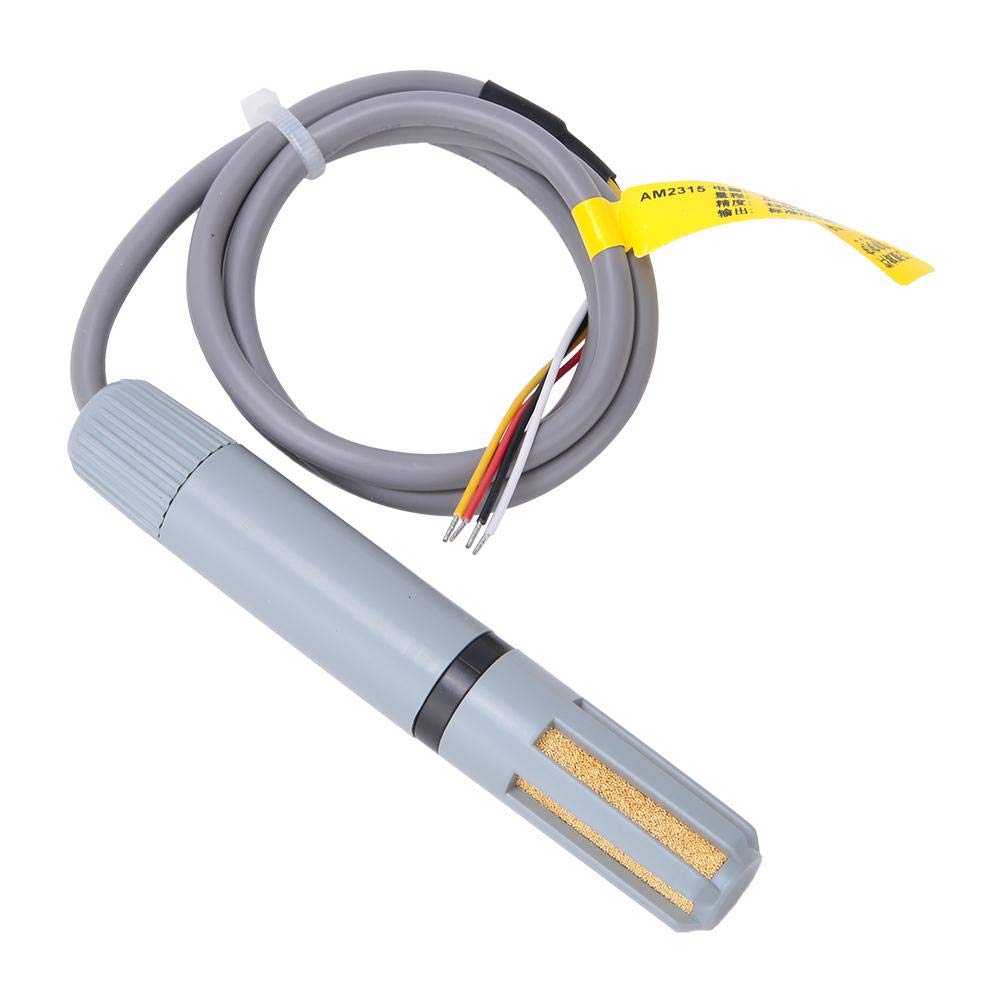

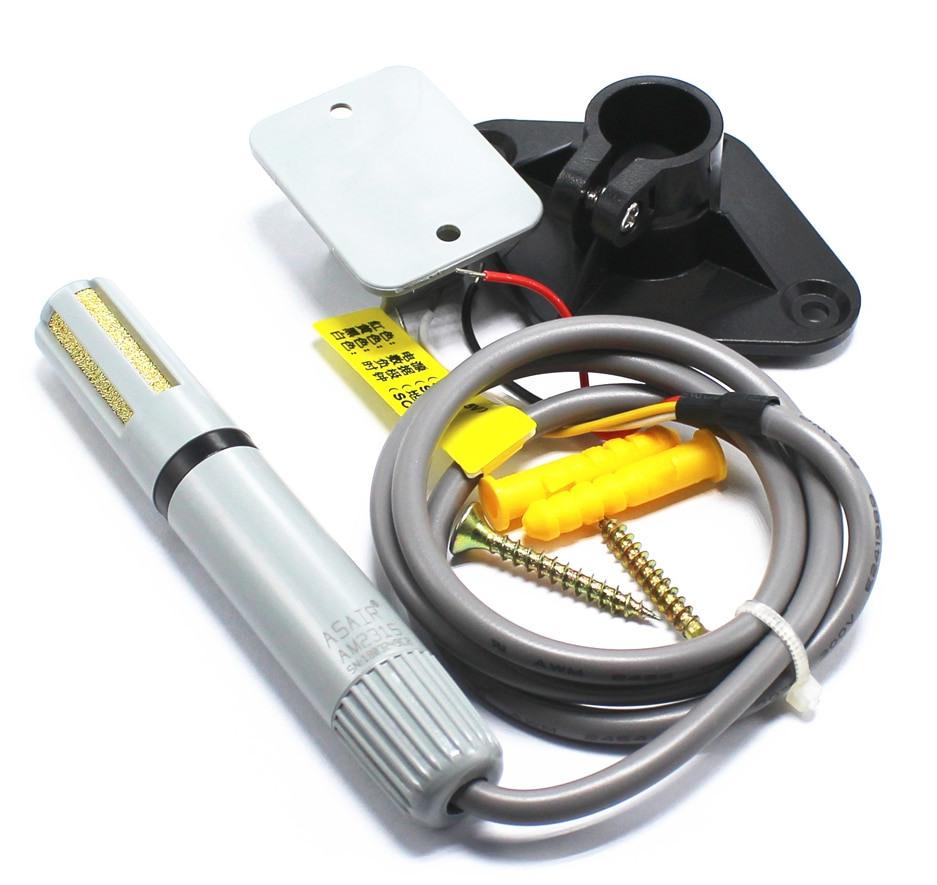

Now available from PMD Way is the Aosong AM2305 digital temperature and humidity sensor. We like this as the sensors are encased in a neat and somewhat weatherproof housing. A mounting bracket and screws are included.
The AM2305 communicates with your microcontroller using the I2C data bus. Please download the AM2315 manual (.pdf). for complete details, specifications and more. We include the 10k pull-up resistors required for the I2C bus.
Specifications:
- Operating voltage: 3.5~5V DC
- Operating current 10 mA max
- Humidity range: 0-100% – 2% accuracy
- Temperature range: -20 to 80°C -±0.1°C accuracy
- Update rate: 0.5 Hz (that’s ~twice a second)
- Weight: 82g
- I2C 7-bit bus address: 0x5C.
Sensor Performance Description:
1) The relative humidity and temperature, calibration of all digital output
2). Excellent long-term stability
3.) Without additional components
4). Long distance signal transmission
5) ultra low power
6) .4 pin installation
7) Completely interchangeable
