APM2.8 ArduPilot Flight Controller KiT

SKU: 0f6090613410
In Stock
KSh 17,250.00
In Stock
2-day Delivery
Speedy and reliable parcel delivery!
Other people want this. 1 people have this in their carts right now.

APM2.8 ArduPilot Flight Controller KiT in Drones Parts

Description

Description

APM 2.8 Flight Controller w / Shock Absorber M8N GPS 5 V 3A Power Module T Plug
APM2.8 Features:
– This is a new APM 2.8 autopilot unit. The sensors are exactly the same with APM2.6, but this version does not have an onboard compass, which makes this version ideal for use with multicopters and rovers.
-APM 2.8 is a complete open source and bestselling autopilot system that won the prestigious 2012 Outback Challenge UAV competition. It allows the user to convert any fixed, rotary wing or multirotor vehicle (even cars and boats) into fully independent vehicles; capable of performing programmed GPS missions with waypoints. Available with top or side connectors.
– This board review has no on-board compass, which is its design for cars (especially multicopters and rovers) so the compass must be placed with as many energy and kinetic sources as possible to avoid magnetic interference. (On fixed wing aircraft it is often easier to install APM far enough from motors and ESCs to avoid magnetic interference, so this is not as critical, but APM 2.6 gives more flexibility in that locations and is a good choice for them, too). This is designed to be used with the 3DR uBlox GPS with the compass (see option below), so that the GPS / Compass unit can be mounted further from the noise sources than the APM itself.

Features:
– Arduino Compatible!
– Can be ordered with top entry pins to connect connectors vertically, or as side entry pins to slide connectors at either end horizontally
– Includes 3-axis gyro, acceleration and magnetometer, along with a high performance barometer
– Onboard 4MB Dataflash chip for automatic datalogging
– Optional outside GPS board, uBlox LEA-6H unit with compass.
One of the first open source autopilot systems to use the Invensense 6 DoF Acceleration / Gyro MPU-6000.
– Atmospheric pressure sensor upgraded to MS5611-01BA03, from measurement majors.
– Include ATMEGA2560 and ATMEGA32U – 2 chips for processing and USB functions respectively.

About power unit:
The power unit is a simple way to provide your APM / Arduflyer with clean power from the lipo battery as well as current consumption and battery voltage measurements, all through a 6 P cable. On-board switching output regulator 5.3 V and a maximum of 3A from up to 6 S lipo battery. Special for APM2.5.2 APM2.6 Pixhawk flight controller

Note: The power unit is only designed to operate the APM / Arduflyer, the RC receiver and accessories (GPS, radio metering). It is not designed for machine operation. Use your own ESC / BEC aircraft for that.

Features:
XT60 Plug
Max input voltage: 30V
Max current sensor: 90A
Voltage and current measuring composition for ADC 5V
Switching Output Regulator 5.3 V and 3A Max
6 P Molex cable plugs directly to APM / Arduflyer 2.5’s ‘PM’ connector

About neo-M8N GPS
Built-in compass and GPS module
– Main chip: NEO-M8N
– With fast space search speed and high resolution
– Includes round plastic shell
– Package size: 15 * 12 * 2cm / 6 * 4.8 * 0.8in
– Package weight: 57g / 2.0oz

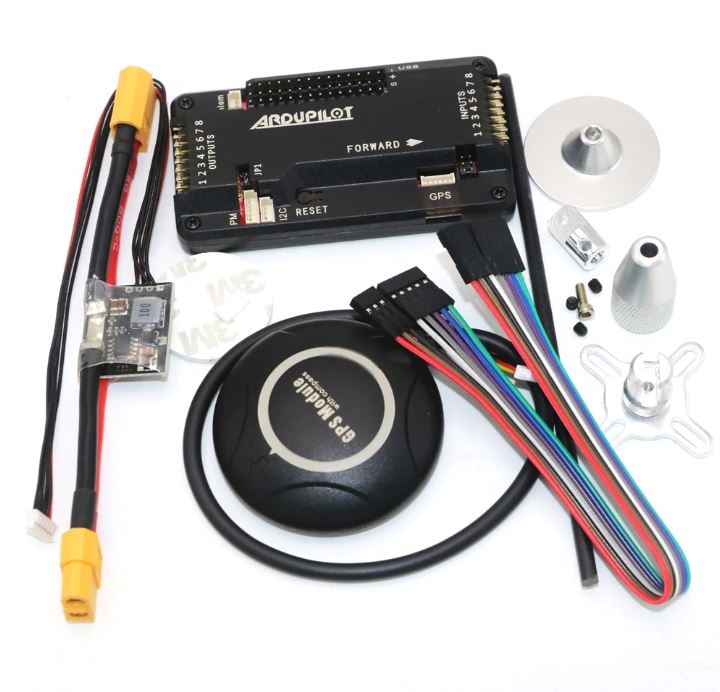

Packing content:
1 x APM 2.8 Flight Controller w / Case and Conjoined Shock Absorber
5 x cables
1 x 5V 3A Power Module XT60 Connector x 1
1 x NEO-M8N GPS
1 x GPS support
