Product Overview

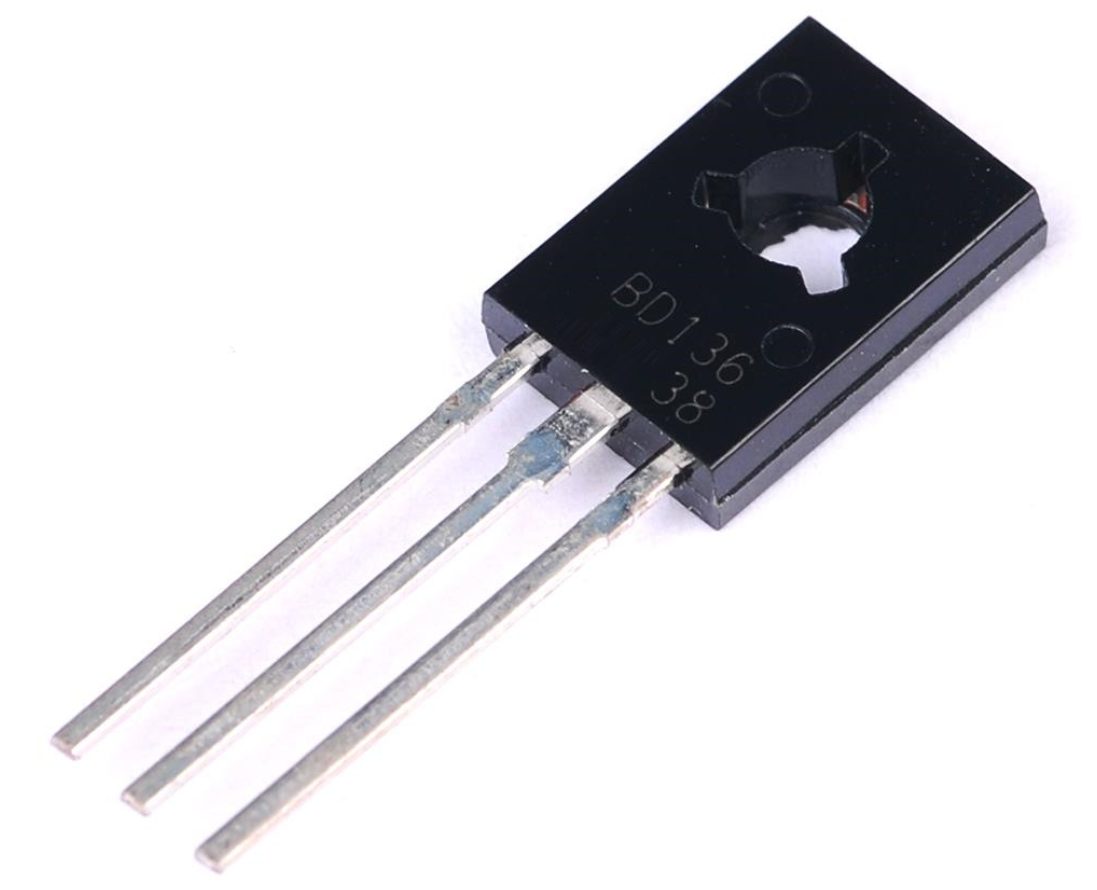

The BD136 is a PNP complementary epitaxial planar Low Voltage Transistor mounted in the plastic package. It is designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.
- Pre-selected in DC current gain
- Plastic casing PNP Transistor
- High DC Current Gain (hFE), typically 80 when IC=10mA
- Continuous Collector current (IC) is 1.5A
- Collector-Emitter voltage (VCE) is 45 V
- Collector-Base voltage (VCB) is 45V
- Emitter Base Breakdown Voltage (VBE) is 5V
- DC current gain (hfe) is 40 to 250
Applications
Industrial, Power Management, Audio
Warnings
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Package Includes
1pc x BD136 TO-126 PNP Power Transistor Output 45V 1.5A
