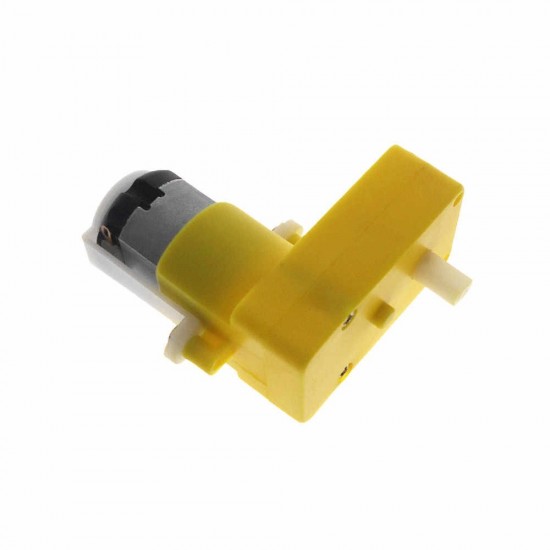

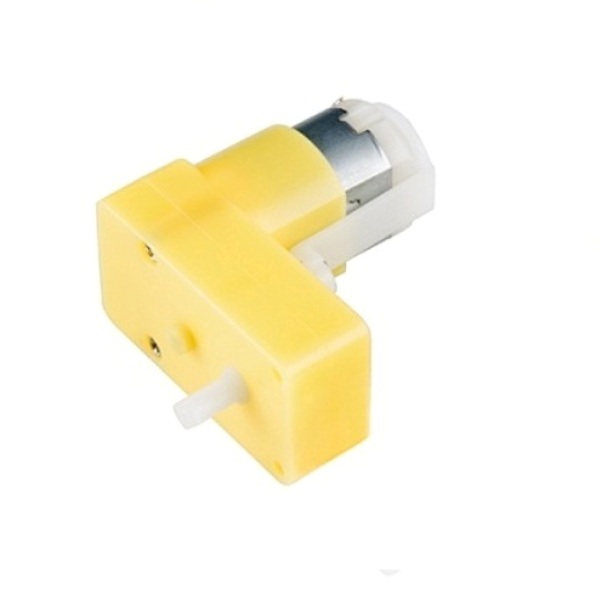

Biaxial L Type TT accelerator/decelerator motor

The bearing used on one side of the motor is used to install the wheel, and the other end can be fitted with an encoder. The controller and motor drive or RoMeo can complete the closed-loop PID, speed measurement, PWM speed regulation and so on.

With our trolley platform, you can carry out the precise control of the car. Especially in some experiments and competitions, precise operation control is very necessary and is the key to winning.

The motor is cheap, small in size, large in power and convenient in installation. It is suitable for tracking cars and wheeled robots.





Operating voltage: 3 ~ 7.5V

Rated voltage: 6 V

Rated torque: 0.2 kgf.cm

Operating environment temperature: -10 ~ +60 ?

Storage temperature: -30 ~ +85 ?

Motor type: 130

Maximum no-load current (3V): 140 mA

Maximum no-load current (6V): 170 mA

No-load speed (3V): 90 rpm

No-load speed (6V): 160 rpm

The maximum output torque: 0.8 kgf.cm

Maximum blocking current: 2.8 A.

Output method: Two-way shaft output

Gear ratio: 1: 120

Output shaft outer diameter: 5.4 mm

Weight: 45 g



 1 pc x Biaxial L Type TT accelerator/decelerator motor
