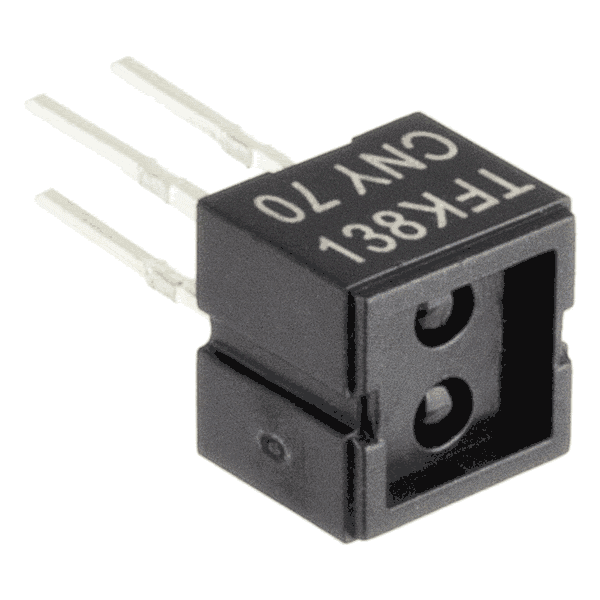

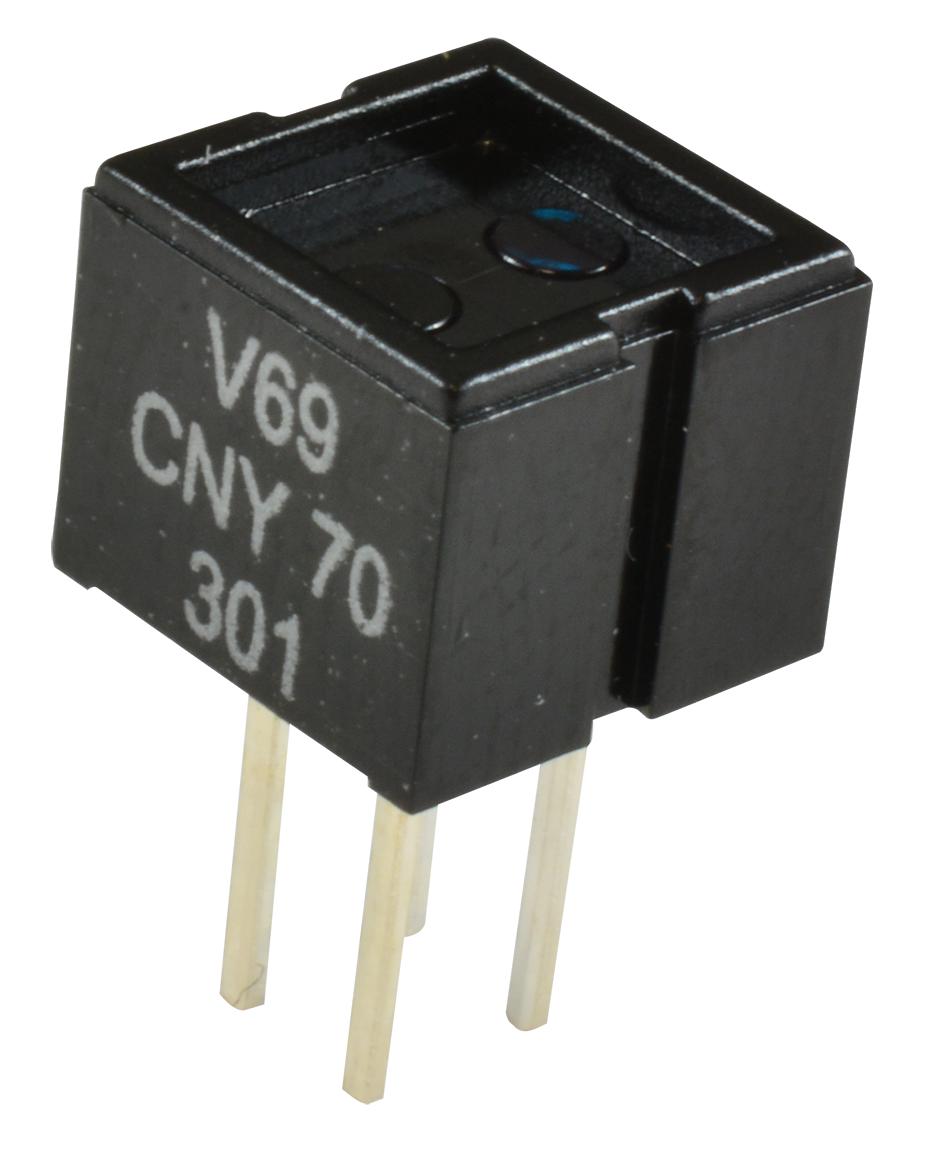

Reflective Optical Sensor CNY70 Transistor Output
The CNY70 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package with a daylight blocking filter.
These work great as close-range proximity sensors, tachometers, or line following sensors.
PRODUCT CONTENTS:
- 1 CNY70 Reflective Optical Sensor
SPECIFICATIONS:
| Emitter | |
| Emitter Wavelength | 950nm |
| Forward Current (Max) | 50mA |
| Forward Voltage | 1.25-1.6V |
| Power Dissipation | 100mW |
| Detector | |
| Detector Type | Phototransistor |
| Filter | Daylight Blocking |
| Collector Current (Max) | 50mA |
| Power Dissipation | 100mW |
| Dimensions (Excluding Pins) | |
| Length | 7mm (0.3″) |
| Width | 7mm (0.3″) |
| Height | 6mm (0.24″) |
| WEIGHT | 0.4g (0.02oz) |
TOP VIEW
PINOUT
RESOURCES:
- CNY70 Datasheet
- CNY70 Library (Arduino Forums)
- CNY70 Tachometer example for Energia, instructions included for use with Arduino (from Frank Milburn)
- CNY70 Proximity Switch example for Energia, instructions included for use with Arduino (from Frank Milburn)
Package Includes
1pc x CNY70 Reflective Photoelectric Switch
