DC Motor 12V 200rpm with Encoder Module

Descriptions:

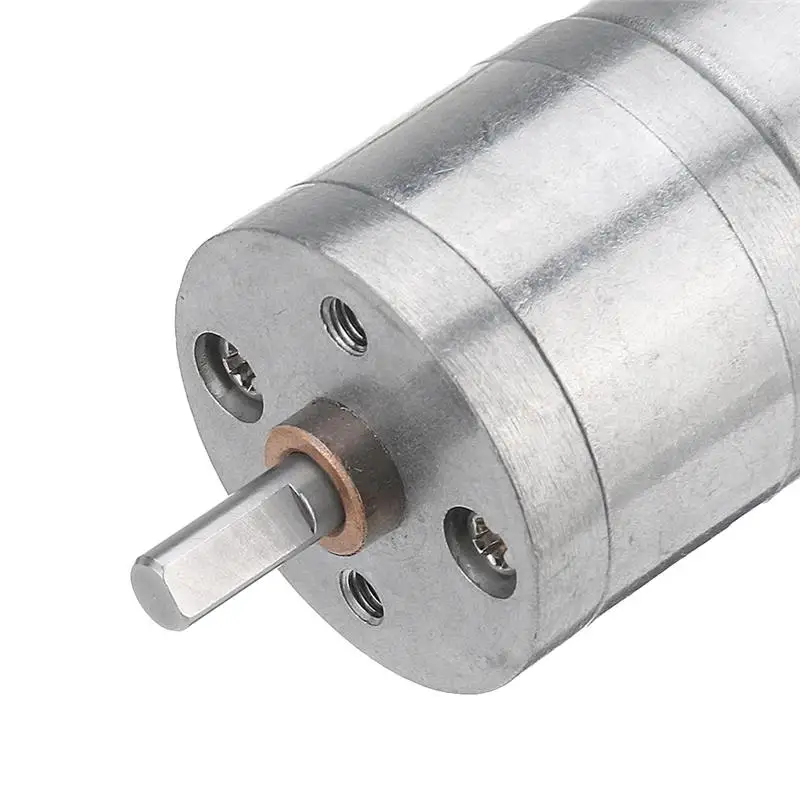

25GA370 DC 12V micro gear reduction motor with speed dial reducer encoder

Specifications:
Material: Metal
Voltage: CC 12V
Power: 3W
Speed regulation: Yes
Rotate on both sides: Yes
Size (focus):
Output shaft diameter: 4mm
Line length: 142mm
Axle length: 12mm
Shaft length: 9.8mm

Applications: for two-wheeled smart vehicles with self-balancing and double balance, smart appliances,.
Robots, electric paper cutting machines with chamber rocker arm, etc.

Wiring:
Red: engine power + positive (shift can control the engine back and forth)
Black: power-negative code (positive and negative cannot be incorrectly connected 12V)
Yellow: signal feedback (11 engine signals)
Green: signal feedback (11 engine signals)
Blue: encoder power + positive (positive and negative cannot be incorrectly connected 12V)
White: Motor power-negative (shift can control the engine back and forth)

Features:
-All the gear of the metal mechanism
Wear resistance, strong torsion resistance, smooth transmission, compact structure.
-D-shaped double axes
D-shaped double shaft, excellent thermal conductivity.
-Type D Hall encoder, high-density 3-layer molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.
– Frequent blockage or frequent onset and annoying ones in the use process are not recommended, which will significantly reduce the service life.

The package includes:
1 pc. x 12V Gear Reduction Motor
