Hall Current Sensor ACS758LCB-050B

Industry-leading noise performance through proprietary
amplifier and filter design techniques
Integrated shield greatly reduces capacitive coupling from
current conductor to die due to high dV/dt signals, and
prevents offset drift in high-side, high voltage applications
Total output error improvement through gain and offset
trim over temperature
Small package size, with easy mounting capability
Monolithic Hall IC for high reliability
Ultra-low power loss: 100 ?? internal conductor resistance
Galvanic isolation allows use in economical, high-side
current sensing in high voltage systems
3.0 to 5.5 V, single supply operation
120 kHz typical bandwidth
3 ?s output rise time in response to step input current
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis

Package includes:

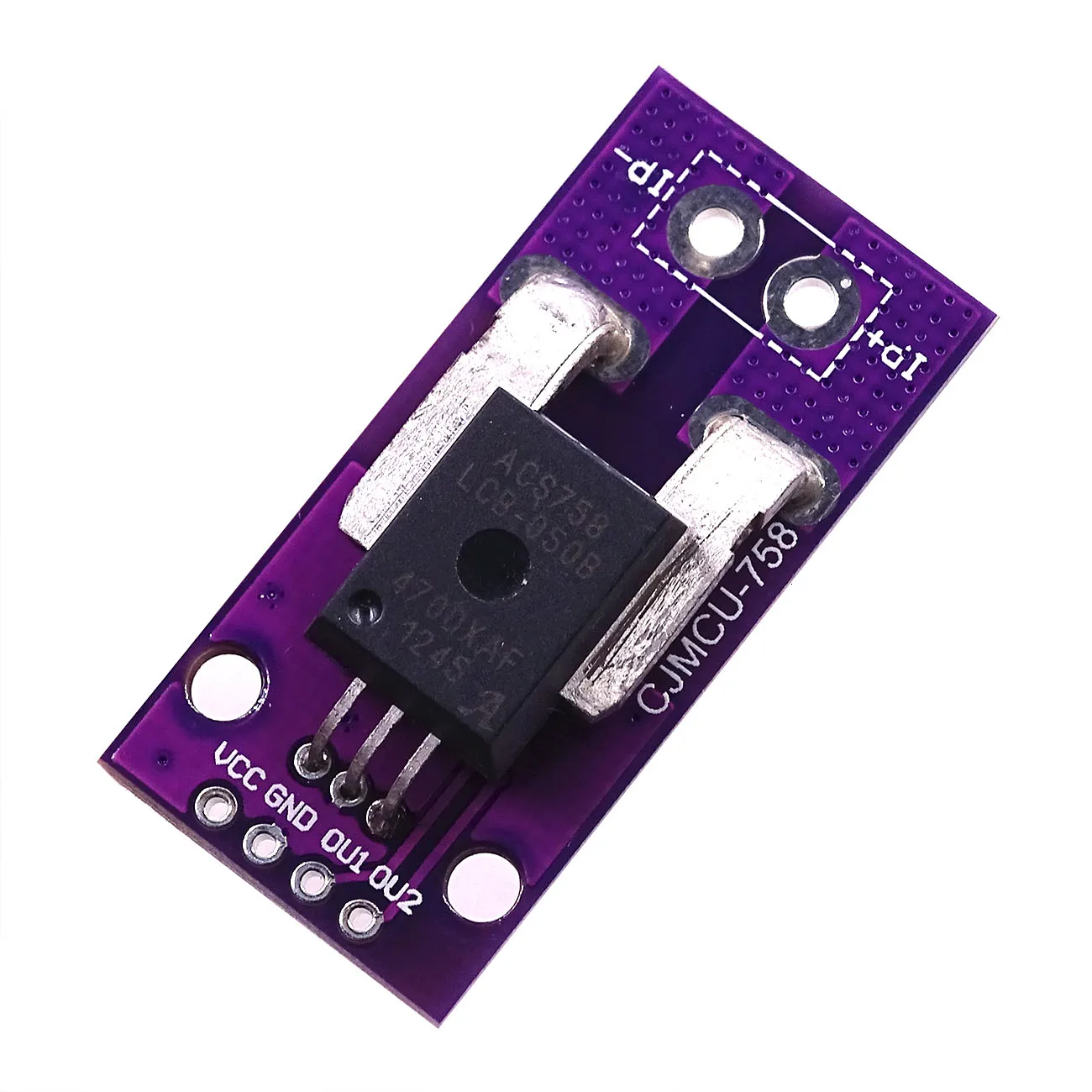

1PCS ACS758LCB-050B-PFF-T Hall Current Sensor Current Module
