JGB37-520 12V 110RPM Encoder Motor plus wheel Kit

SKU: 4bec8dc23a8e
In Stock
KSh 3,750.00
In Stock
2-day Delivery
Speedy and reliable parcel delivery!

JGB37-520 12V 110RPM Encoder Motor plus wheel Kit in More Categories

Description

Description

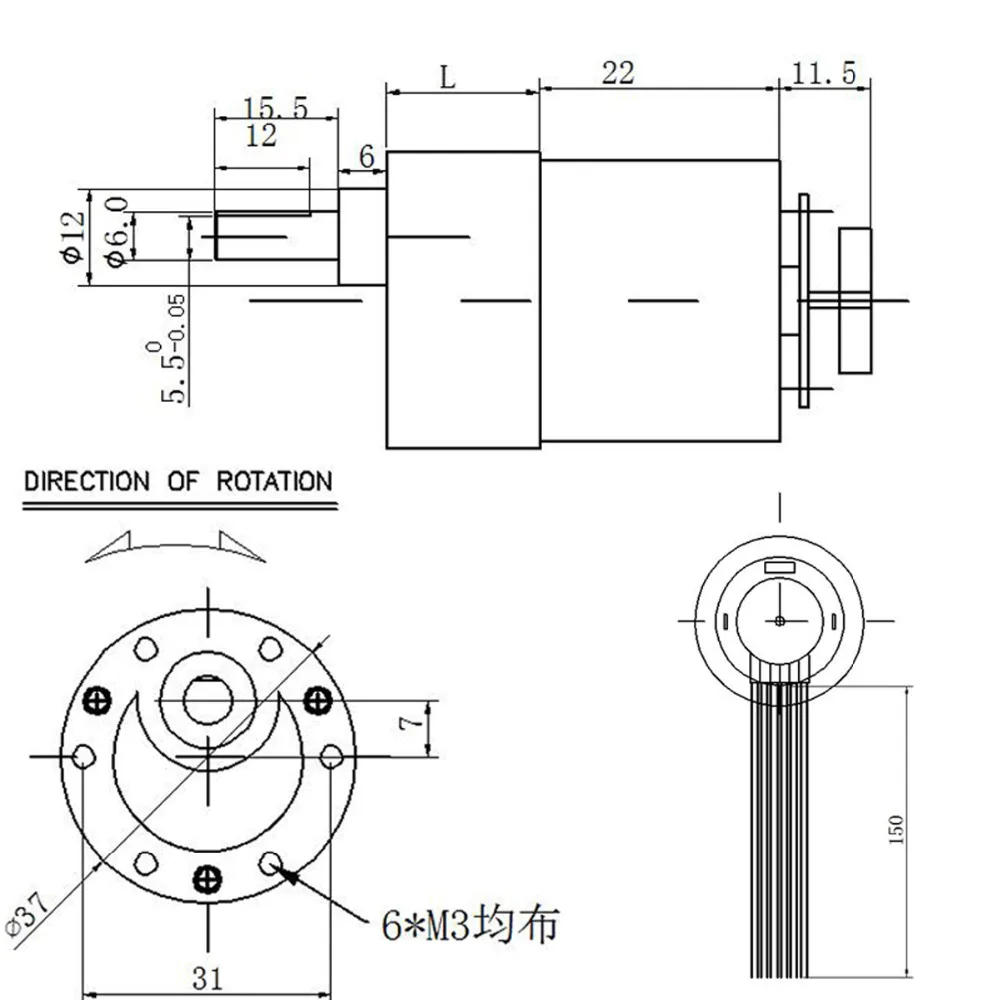

Specification
Type: Micro DC Geared Motor with Hall Encoder
Model: JGB37-520
Power: 7~15W
Voltage: 12V
Current: 0.45A/1A
Speed: 6~110 RPM
Maximum torque: 10KG.CM
Output shaft: 21.5mm
Weight: 196g
Applicable instructions: connect 12V power supply
With speed measurement function
The speed is adjustable
Rotating support positive reversal

Connection encoder:
1) red cable: power +
2) black cable: encoder-
3) Yellow cable: signal line one
4) Green cable: encoder +
5) blue cable: motor-
6) White cable: signal line two
7) positive rotation of the motor connection method: red cable and green cable connected to the positive power supply, black cable and blue cable connected to the negative of the power supply, the yellow cable and the white cable are signal cables.
8) Reverse Motor Rotation connection method: red cable and green cable connected to the negative power supply, black cable and blue cable connected to the positive power supply, yellow cable and white cable are signal cable
9) only connects to the black cable, the green cable and the encoder light up
10) The red cable is connected to the positive power supply, the black cable is connected to the negative of the power supply, the motor is turning in the front direction

Package Includes:
1 * Gear motor with encoder
1 * mounting bracket
1 * 4mm coupling
1 * 65mm car wheel + Screws

22

QQ20170811145529123
