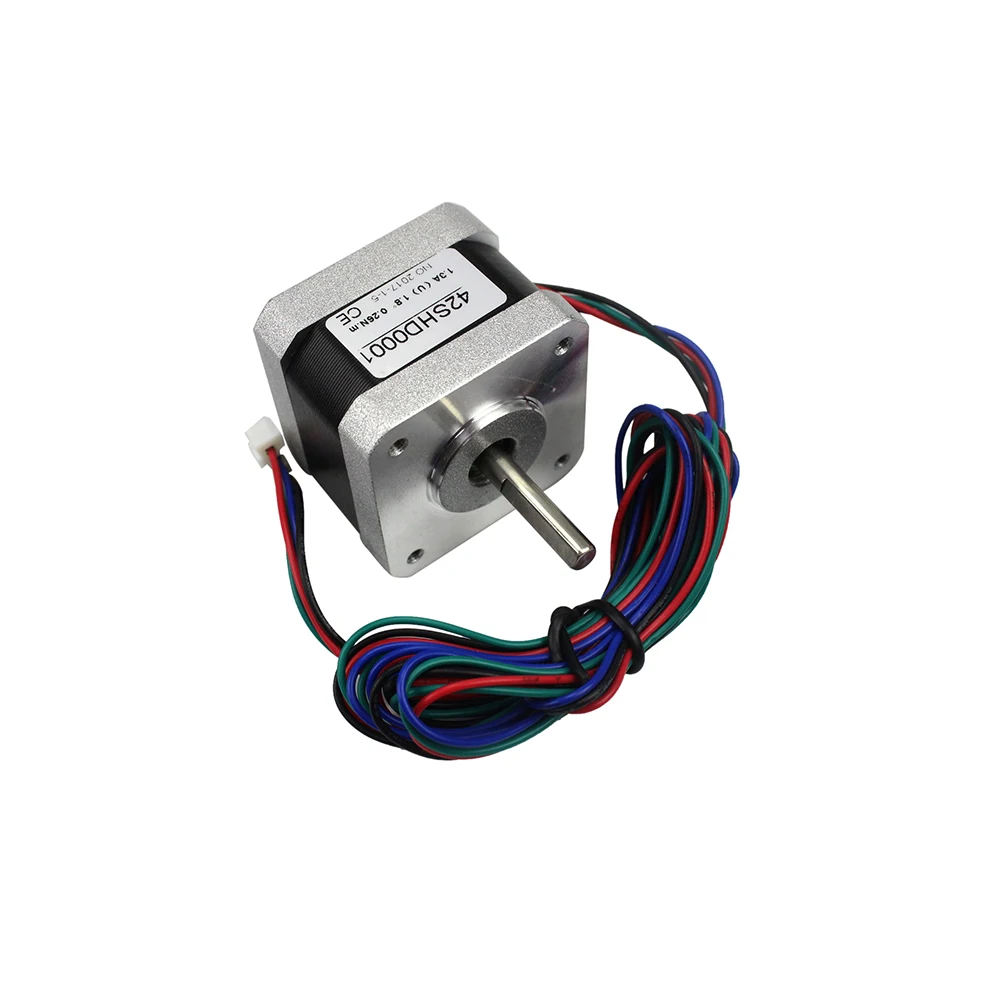

Nema17 17HS4401 Stepper Motor

   This is the most popular Nema 17 model. It with 1.8°step angle (200 steps/revolution). Each phase draws current 1.3A at 12V, allowing for a holding torque of 26Ncm(36.8oz.in). Normally , it use for Linear actuators and CNC router for plastic&metal .

    Holding Torque: 4000g.cm (40N.cm)
    Type: Hybrid
    Phase: 2
    Current / Phase: 1.7A
    Certification:CCC,CE,ISO,ROHS,U
    Step Angle:1.8 degree
    Form Factor: NEMA17
    Wire Lead: 4 wire, approx 60cm long
    Termination: 1×4 0.1″ 2.54mm
    Length: 40mm
    Phase Resistance: 1.5 ohms
    Weight: 280 gm

   1Pcs 42SHD0001
