RN2483, LoRa, LoRaWAN, IOT, 433/868Mhz module

Description

The RN2483 is a fully-certified 868 MHz module based on wireless LoRa® technology.  The RN2483 utilizes a unique spread spectrum modulation within the Sub-GHz band to enable long range, low power, and high network capacity.
The module’s embedded LoRaWAN protocol enables seamless connectivity to any LoRaWAN compliant network infrastructure, whether public or privately deployed.  The module is specifically designed for ease of use, which shortens development time and speeds time to market.  LoRa technology is ideal for battery-operated sensors and low power applications such as IoT, M2M, Smart City, Sensor networks, Industrial automation, and more.
The RN2483 is the first LoRa module to pass LoRa Alliance Certification testing.  It is certified to the LoRaWAN 1.0.1 specification, ensuring that designers can quickly and easily integrate their end devices into any LoRaWAN network.

Features:

• On-board LoRaWAN protocol stack
• ASCII command interface over UART
• Compact form factor 17.8 x 26.7 x 3 mm
• Castellated SMT pads for easy and reliable PCB mounting
• Device Firmware Upgrade (DFU) over UART
• On-board LoRaWAN protocol stack
• ASCII command interface over UART
• Compact form factor 17.8 x 26.7 x 3 mm
• Castellated SMT pads for easy and reliable PCB mounting
• Device Firmware Upgrade (DFU) over UART
• 14 GPIO for control, status, and ADC

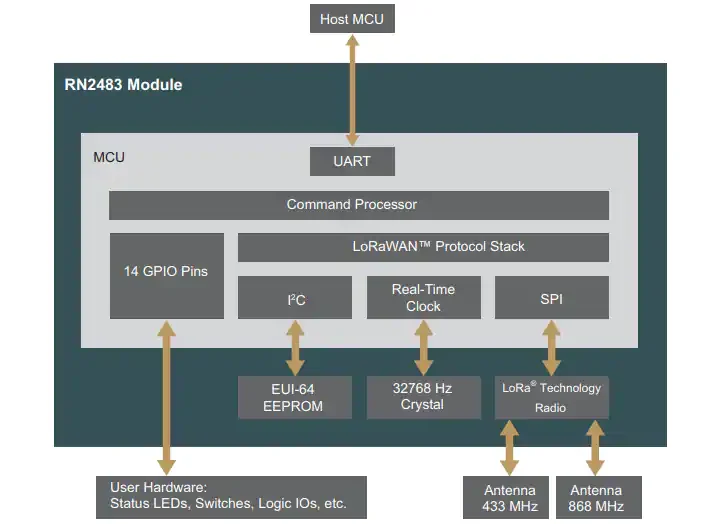

• Highly integrated module with MCU, crystal, EUI-64 Node Identity Serial EEPROM, Radio transceiver with analog front end, and matching circuitry
• Environmentally friendly, RoHS compliant
• European R&TTE Directive Assessed Radio Module

Specifications:

• LoRa™ Modem
• 168 dB maximum link budget
• +20 dBm – 100 mW constant RF output vs. V supply
• +14 dBm high efficiency PA.
• Programmable bit rate up to 300 kbps
• High sensitivity: down to -148 dBm
• Bullet-proof front end: IIP3 = -12.5 dBm
• Excellent blocking immunity
• Low RX current of 10.3 mA, 200 nA register retention
• TX current up to 120 mA at +20 dBm output power
• Fully integrated synthesizer with a resolution of 61 Hz
• FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation
• Built-in bit synchronizer for clock recovery
• Preamble detection
• 127 dB Dynamic Range RSSI
• Automatic RF Sense and CAD with ultra-fast AFC
• Packet engine up to 256 bytes with CRC
• Built-in temperature sensor and low battery indicator
• Dimension – 16.0 mm x 16.00 mm
• RoHS compliant – Yes

APPLICATIONS:

• Automated meter reading
• Home and building automation
• Wireless alarms, security, and surveillance systems
• Industrial monitoring and control
• Machine to Machine (M2M)
• Internet of Things (IoT)

Firmware Versions

RN2483A-I/RM104 – LoRaWAN Specification 1.0.1, Ideal for Class A applications, Regulatory and LoRaWAN certified

RN2483A-I/RM105 – LoRaWAN specification 1.0.2, Supports both Class A and Class C, Regulatory certified

Package Included:
1 x RN2483 – Wireless Modules
