Product Overview
The SN74HC14DR is a hex Schmitt-Trigger Inverter performs the Boolean function Y=A in positive logic. It is suitable for AC inverter drives, AC servo drives and printers.
- Outputs can drive up to 10 LSTTL loads
- 20µA Maximum low power consumption
- 11ns Typical tpd
- ±4mA Output drive at 5V
- 1µA Maximum low input current
- ±20mA Input and output clamp current
- ±25mA Continuous output current
- ±50mA Continuous current through VCC or GND
Applications
Industrial
Technical Docs
Package Includes

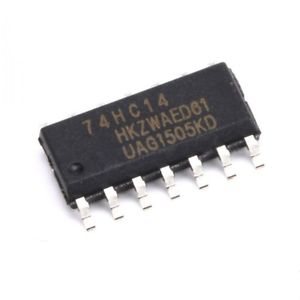

1pc x SN74HC14 SMD Inverter, Schmitt Trigger
