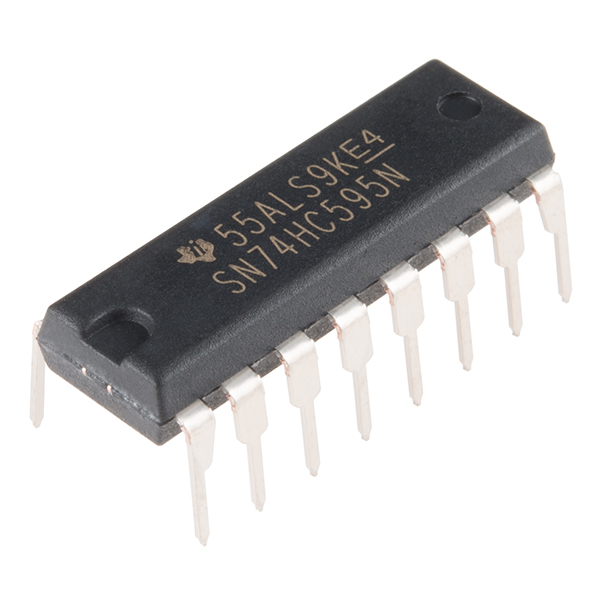

SN74HC595N 8 bit Shift Register IC

Features

• 8-Bit Serial-In, Parallel-Out Shift

• Wide Operating Voltage Range of 2 V to 6 V

• High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads

• Low Power Consumption: 80-?A (Maximum) ICC

• tpd= 13 ns (Typical)

• ±6-mA Output Drive at 5 V

• Low Input Current: 1 ?A (Maximum)

• Shift Register Has Direct Clear
• On Products Compliant to MIL-PRF-38535,All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

Applications
• Network Switches

• Power Infrastructure

• LED Displays

• Servers
