Product description
1.Working voltage: DC5V
2, Operating Current: 50mA
3, the temperature measuring range: -200°C – 1300 °C [Test procedure for 0-1023 °C]
4, the temperature measurement accuracy: ± 1.5 °C
5, the temperature resolution: 0.25 °C
6, the output mode: SPI digital signal
7, with a fixed mounting holes for easy fixed installation.
8, storage temperature: -50 ~ 150 °C
9, the module weight: 4g
10, module size: 25mm * 15mm * 13mm

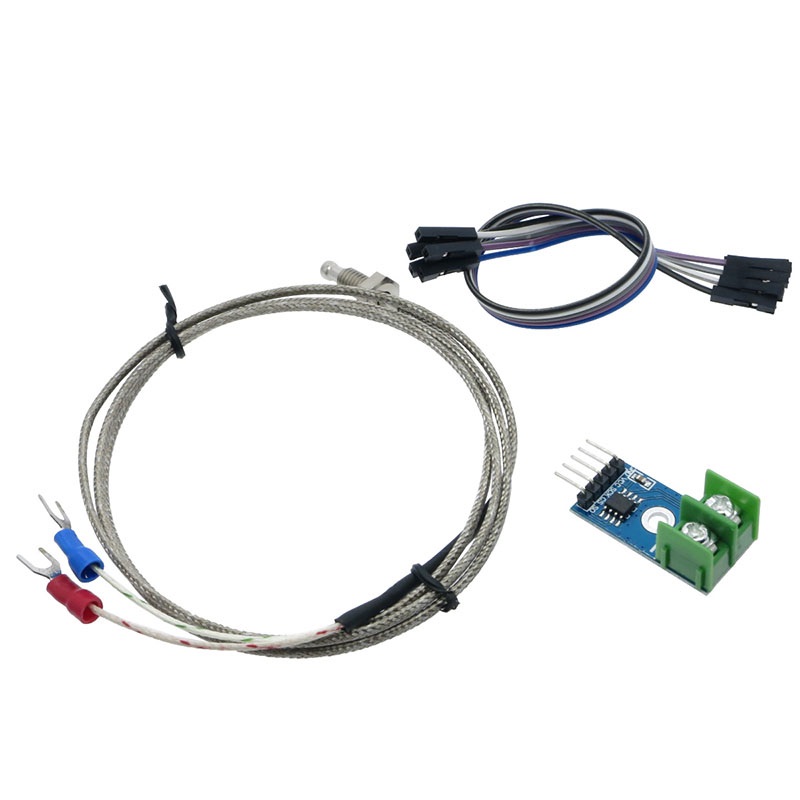

Package Included:

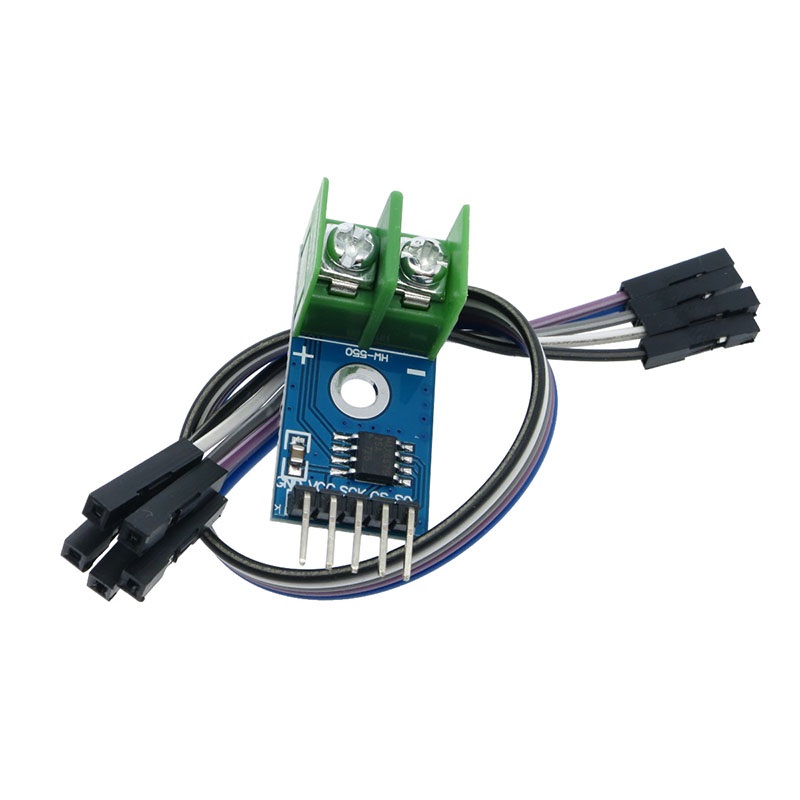

- 1PCS*MAX6675 Module
- 1PCS*K Type Thermocouple Thermocouple Sensor
- 1PCS* 4PINDuPontline
