Product Description
The ULN2803ADWR from Texas Instruments is a surface mount, high voltage and high current darlington transistor array in SOIC package. This device consists of eight NPN darlington pairs that feature high voltage outputs with common cathode clamp diodes for switching inductive loads. Collector current rating of each darlington pair is 500mA and pairs may be connected in parallel for higher current capability. Typical applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers and logic buffers.
- High voltage outputs of 50V
- Inputs compatible with various types of logic
- On state input voltage of 3V at 300mA collector current
- Collector to emitter saturation voltage of 1.3V at 350mA collector current
- Operating temperature range -40°C to 85°C
- Collector current (Ic) of 500mA (single output)
Applications
Motor Drive & Control
Power Management
Industrial
Portable Devices
Consumer Electronics
Package Includes

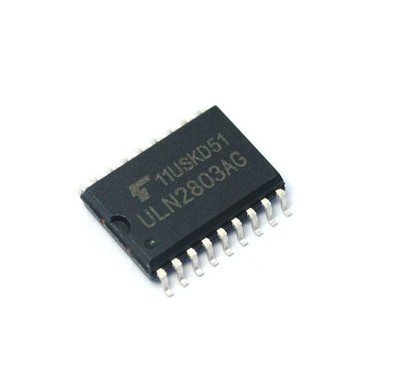

1pc x ULN2803AFWG Bipolar Transistor SMD IC
