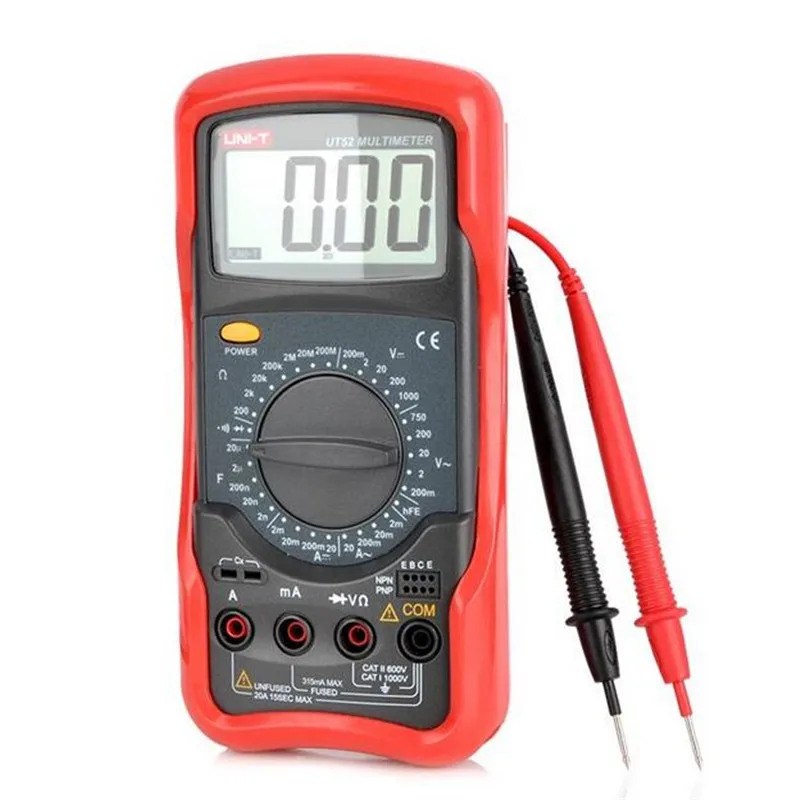

The new “ut50” series in 3 1/2 digits DMM is a stable, high reliability digital multimeter, the whole circuit is designed for LSI, dual slope A / D converter as the core and with fully functional overload protection, it can Use to measure DC and AC voltage, current, resistance, capacitance, diode, temperature, frequency and electrical current off, it is an ideal test tool.
Ut52 did not test the Temperature / Frequency Function.
————————————————– ————————————————– –
DC voltage: 200mV / 2V / 20V / 200V / 1000V ± (0.5% + 1)
DC current: 2ma / 20ma / 200ma / 20a ± (0.8% + 1)
AC voltage: 200mV / 2V / 20V / 200V / 750V ± (0.8% + 3)
AC current: 2ma / 20ma / 200ma / 20a ± (1% + 3)
Resistance: 200? / 2k? / 20k? / 200k? / 2m? / 20m? / 200m? ± (0.8% + 1)
Capacitance: 2nF / 20nF / 200nF / 2?f / 20?f
Transistor Test
Diode test
Continuity buzzer
Low voltage tips
Voltage measurement input impedance
Maximum display: 1999
Screen size: 65 × 33mm
Power: 9V 6F22 battery * 1
Body Color: Red + Gray
Body Weight: 540g
Dimensions: 190 × 88 × 34mm
Standard accessories: protective cover, pen, box, manual, warranty card
Package included:
1 x UT52 Digital Multimeter
1 x Test Lead
1 x English Manual.
1 x Strap
