Description
Description
The 3 1/2 digit DMM in the new “UT50” series is a stable, high-reliability handheld digital multimeter with a large-scale integrated circuit and a dual-integrated A/D converter. Full-featured overload protection, which can be used to measure DC and AC voltage, current, resistance, capacitance, diode, temperature, frequency and current continuity, is the ideal test tool for users.
| Group this function | Range | Basic accuracy |
| model | ? | UT55 |
| DC voltage | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| AC voltage | 2V/20V/200V/750V | ±(0.8%+3) |
| DC | 2mA/20mA/200mA/20A | ±(0.8%+1) |
| Alternating current | 20mA/200mA/20A | ±(1%+3) |
| resistance | 200?/2K?/20K?/200K?/2M?/20M?/200M? | ±(0.8%+1) |
| capacitance | 2nF/20nF/200nF/2?F/20?F | ±(4%+3) |
| temperature | -20 ° C ~ 1000 ° C | ±(1%+3) |
| frequency | 20kHz | ±(1.5%+5) |
| special function | ?? | |
| Three pole tube test | ? | ? |
| Diode test | ? | ? |
| On-off beep | ? | ? |
| Sleep function | ? | ? |
| Low voltage prompt | ? | ? |
| Voltage measurement input impedance | 10M? | ? |
| Maximum display | 1999 | ? |
| Display size | 65×33mm | ? |
| General characteristics | ? | |
| power supply | 9V battery (6F22) | |
| body color | Red + gray | |
| Body weight | 540g (including protective cover) | |
| Dimensions | 190×88×34mm | |
| Standard accessories | Test pen, battery, protective sleeve, point temperature probe | |
| Standard inner packaging | Color box, manual, warranty card | |
| Standard package quantity | 20 sets | |
| Outer box size | 535×362×385mm | |
| Standard box gross weight | 17.4kg | |
| Optional accessories | Table lamp (UT-TL), illuminated meter (UT-L1/L2) (charged) | |

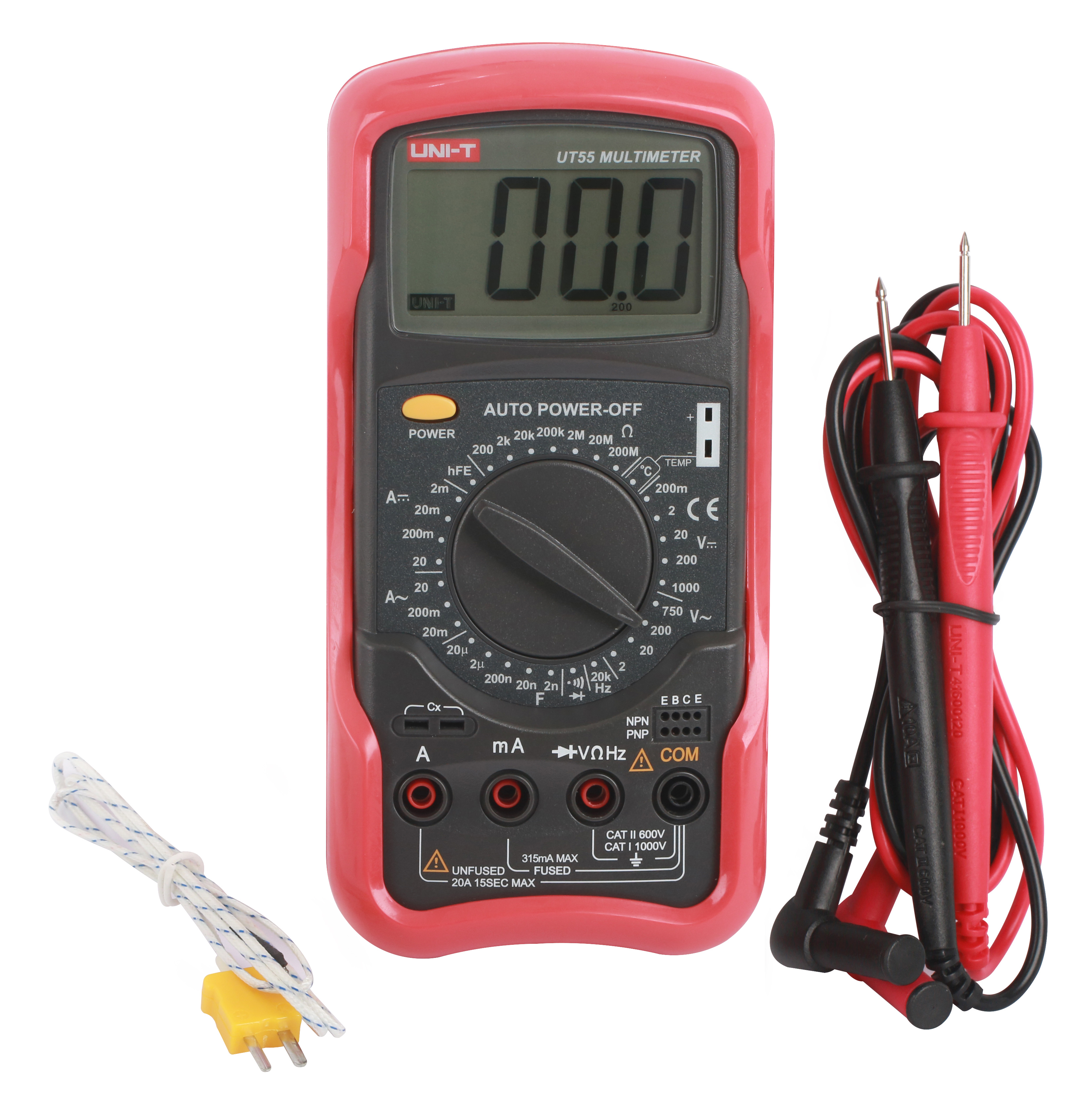

Package includes:
1 x UNI-T UT55+ H Digital Multimeter
1 x Point type temperature probe
1 x Test Lead
1 x English Manual
