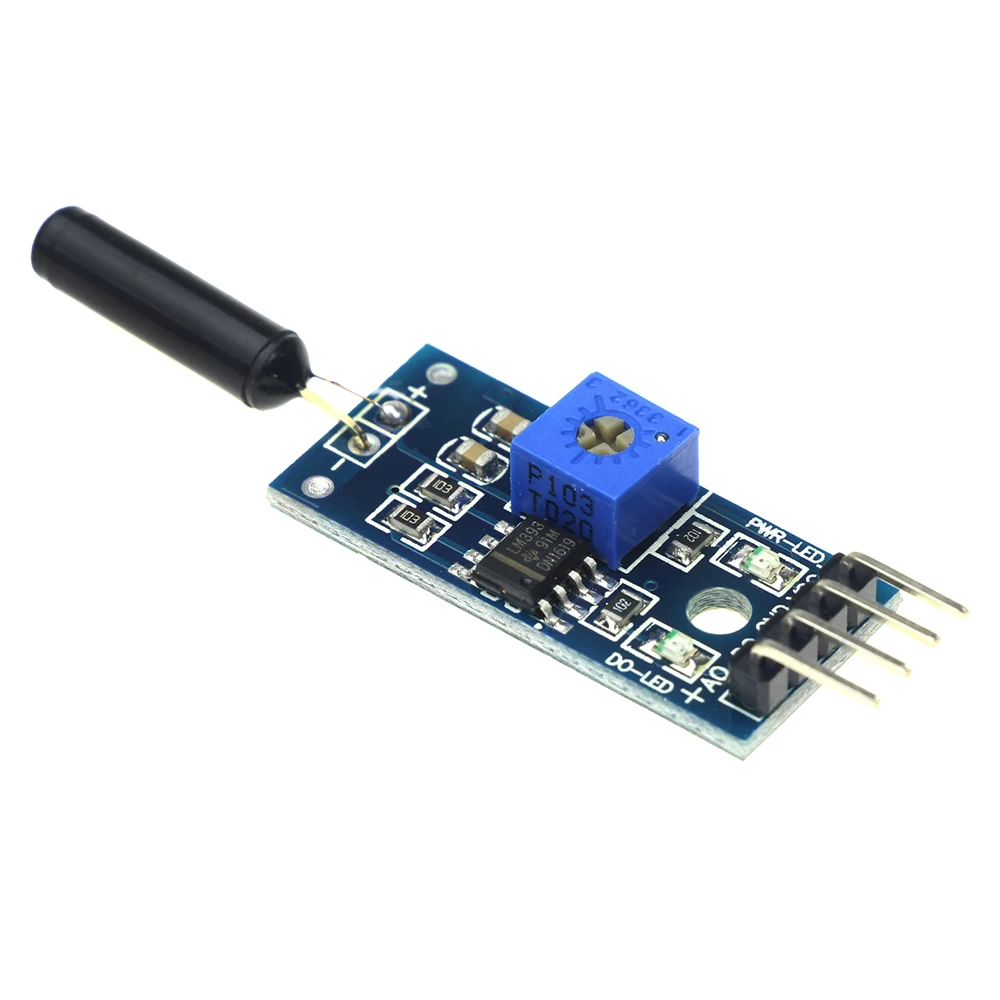

Vibration Sensor Module

Vibration Sensor Module Vibration Switch Alarm Module

Applications:

Used to trigger the effect of various vibration, reported the theft alarm, intelligent car, electronic building blocks, etc.

Please note that this module in the induction to the small vibration triggered when time is short, not enough to drive the relay, according to some people can be directly connected to the relay module, use the effect not beautiful.

   1. Our company produces the high sensitivity of vibration switch, with SW – 18010 – p vibration sensor, by default.
   2. The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma
   3. The working voltage of 3.3 V to 5 V
   4. Output form: digital switch output (0 and 1)
   5. Equipped with fixed bolt hole, convenient installation
   6. Small board PCB size: 3.2 cm x 1.4 cm
   7. Use the LM393 wide voltage comparator

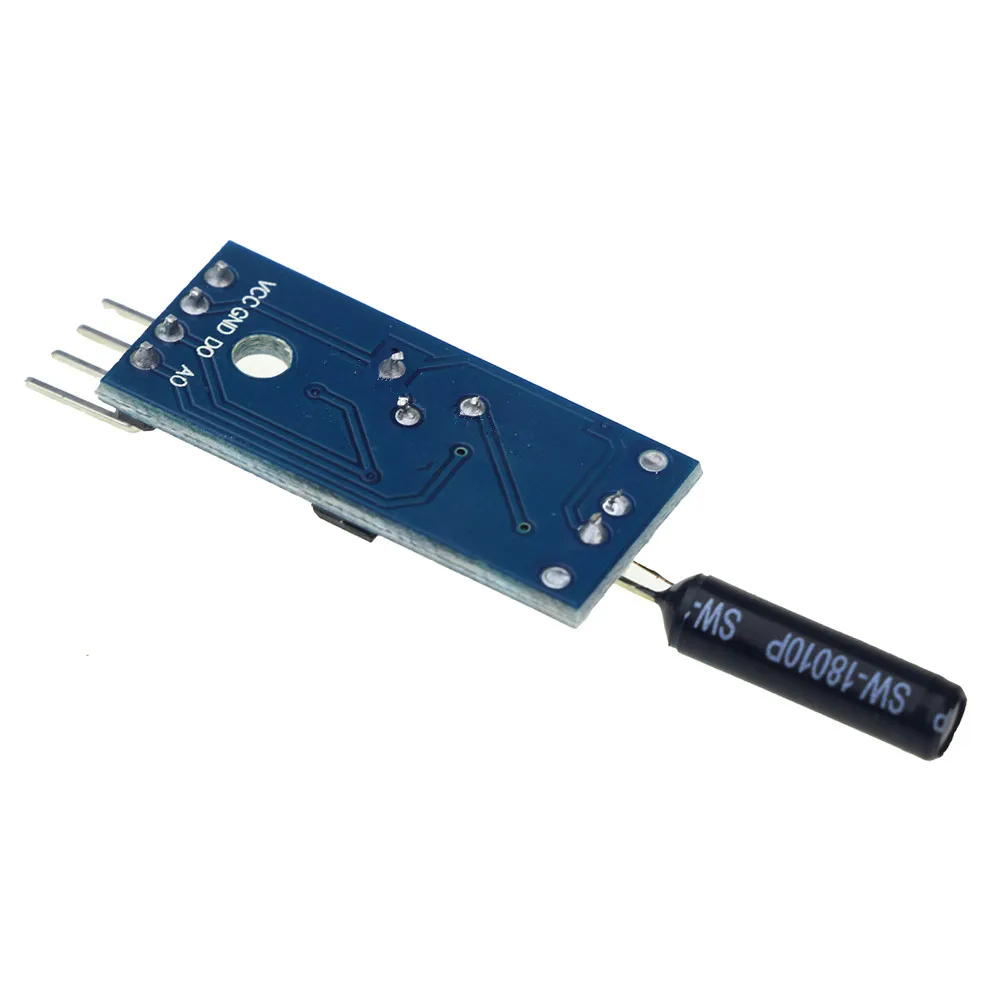

   Module connection details:

   1. The VCC: positive
   2. The GND: connect power negative
   3. DO: digital signal output
   4. AO: this feature with the vibration sensor is invalid

   1Pcs vibration sensor module
