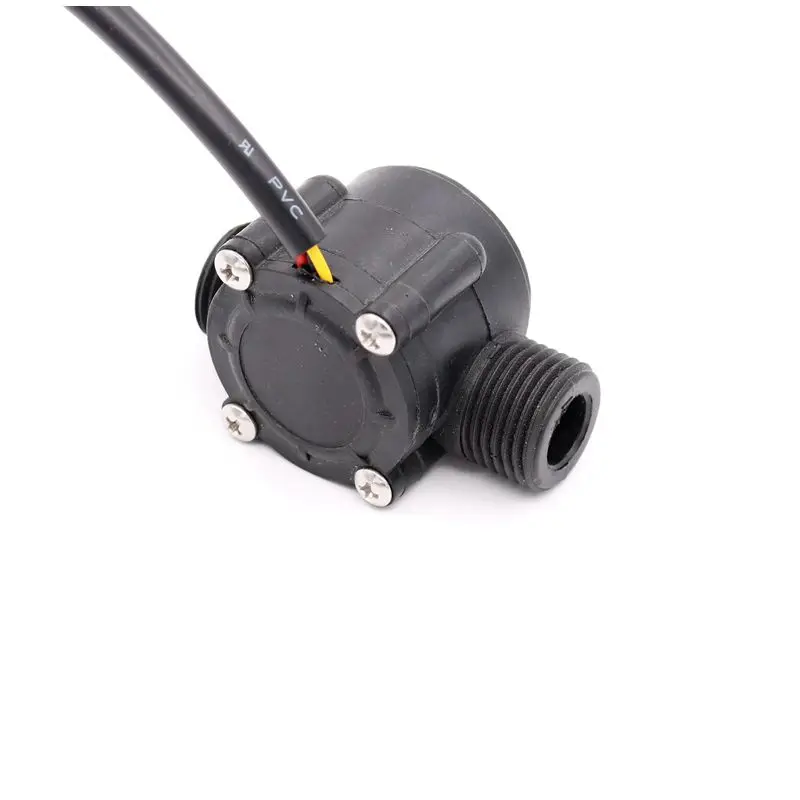

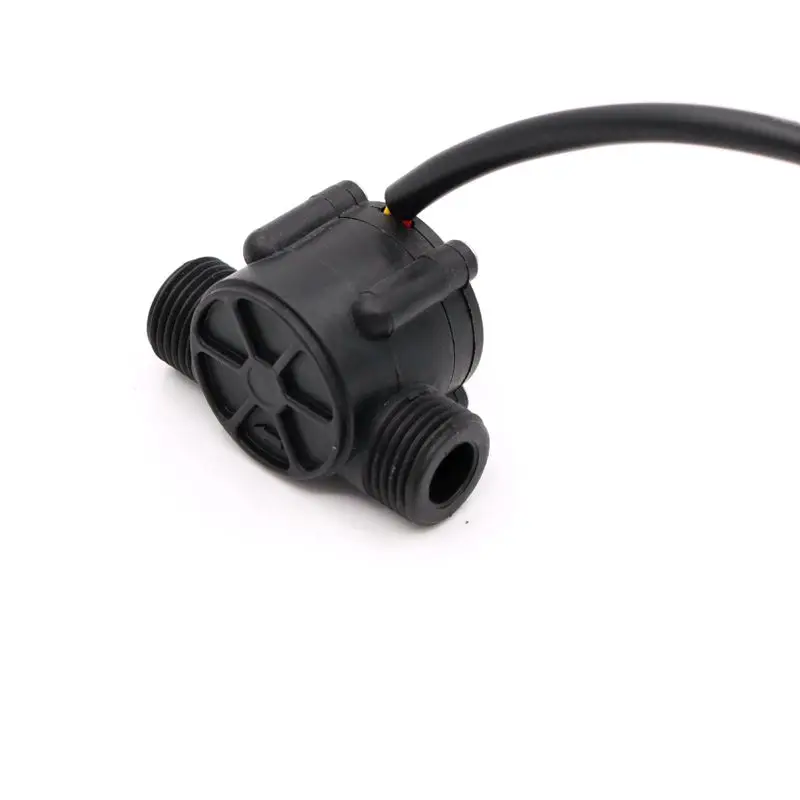

YF-S201 1/2” Water Flow Sensor

KSh 1,200.00

YF-S201 1/2” Water Flow Sensor in Sensors

Description

Description

Product Features:
1, Lightweight appearance, small size, easy to install
2, The impeller embedded with stainless steel beads, always wearable
3, Hall element, the circuit is equipped with waterproof and sealed rubber ring, waterproof silicone rubber at the entrance
5, The materials are all in line with ROHS testing standards

Introduction:
Water flow sensor is mainly made of a plastic body, the rotor assembly and a Hall flow sensor.Water heater which is mounted on the end, for detecting the water flow, the water passes through the water when the rotor assembly,Magnetic rotor and change as the flow speed, the Hall sensor output corresponding pulse Signal, the feedback to the controller,
the controller determines the size of the water flow, for control.

Caution:
Non-violent shock, and chemical erosion.
Non-throwing or hitting.
The current must less than 10mA
Medium temperature should not exceed 120°C.

Output waveform: square wave
Lead wire:
Red – IN – positive electrode
Yellow – OUT – signal output line
Black – GND – negative electrode

Frequency: F = 7.5 * Q (L / Min)
Error: ±2%
Voltage: 3.5-24VDC,
Current: less than 10mA
Output 450 pulses after one liter of water
Flow range :1-30L / min

Parameters:
Lowest Rated Working Voltage: DC4.5
Max Operating Current: 15 mA (DC 5V)
Working Voltage Range: DC 3.5 ~ 24 V
Load Capacity: ?10 mA (DC 5V)
Temperature Range: ?80 °C
Humidity Range: 35% ~ 90% RH (no condensation state)
Allowable Withstand Voltage: Water pressure below 1.75Mpa
Storage Temperature: -25 ~ + 80°C
Storage Humidity: 25% ~ 95% RH
?
